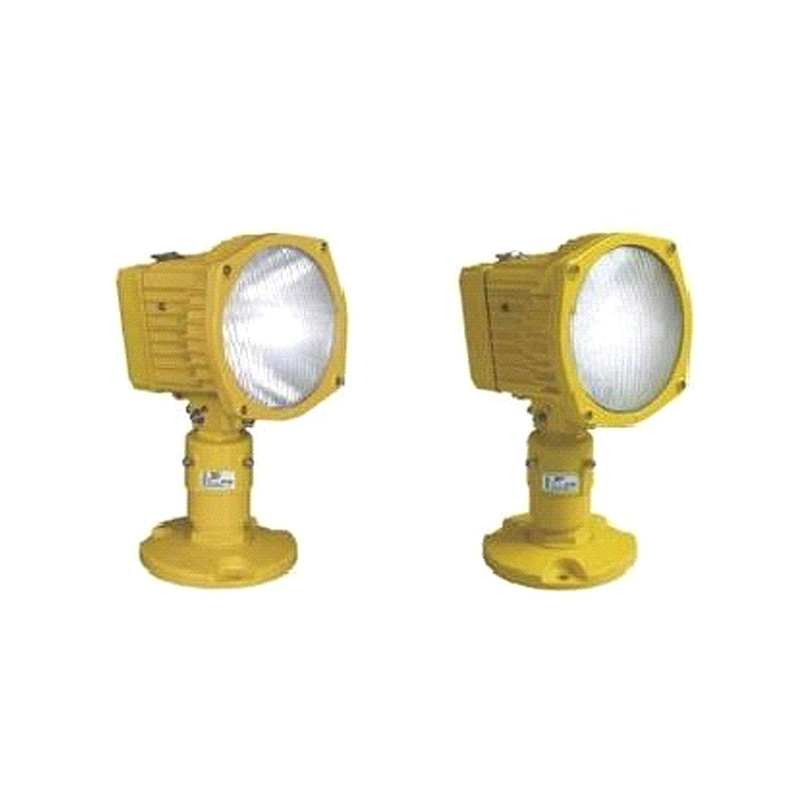

Approach Lights

Product Description

Approach lights are an essential part of airport lighting systems, providing crucial visual information for pilots during the approach and landing phases.

Specification

• The lamp design is strictly in accordance with the technical requirements of CAAC: "Technical Requirements and Testing Specifications for Approach Lamps for Civil Airports" (AC-137-CA-2017-03);

• The long life, energy saving and maintenance-free characteristics of LED bring economic benefits;

• High-efficiency power factor correction circuit effectively reduces interference with the power supply network;

• Dual-channel high-frequency switching LED constant current circuit, two-channel separate dimming;

• High-precision digital dimming, perfectly simulates the dimming curve of halogen light source;

• Professional LED heat dissipation method, effectively reduces the operating temperature of lamp beads and drivers, and ensures the long service life of LED;

• Adopt 125-degree high-temperature long-life electrolytic capacitors to improve the stability of LED driver power supply;

• Provide driver fault and load open circuit detection functions, and disconnect the secondary of the isolation transformer when a fault occurs;

• The overall structure of the lamp is compact, beautiful in shape, small in windward area, and strong in wind resistance (can withstand a wind speed of 480km/h);

• The lamp head is equipped with an angle measurement and calibration fixed position, which is convenient for installation =Calibration of the position of the lamp;

• The main body of the lamp is made of aluminum alloy and the surface is treated with anti-corrosion, which is light, strong and has good anti-corrosion performance;

• The overall protection of the lamp reaches IP54 level, preventing dust and rain from corroding the inside of the lamp;

• The glass cover is made of special tempered glass to prevent the glass cover from bursting due to drastic temperature changes;

• The fasteners are made of stainless steel and are durable;

• The easily breakable parts are processed by precision machinery to meet the requirements of CAAC and FAA, and the performance is stable and reliable;

• The modular design of the parts is universal and easy to replace.


Features

Power:150W;

Brightness:20000cd;

Protection level:IP54;

Ambient temperature:-55-+55℃.
