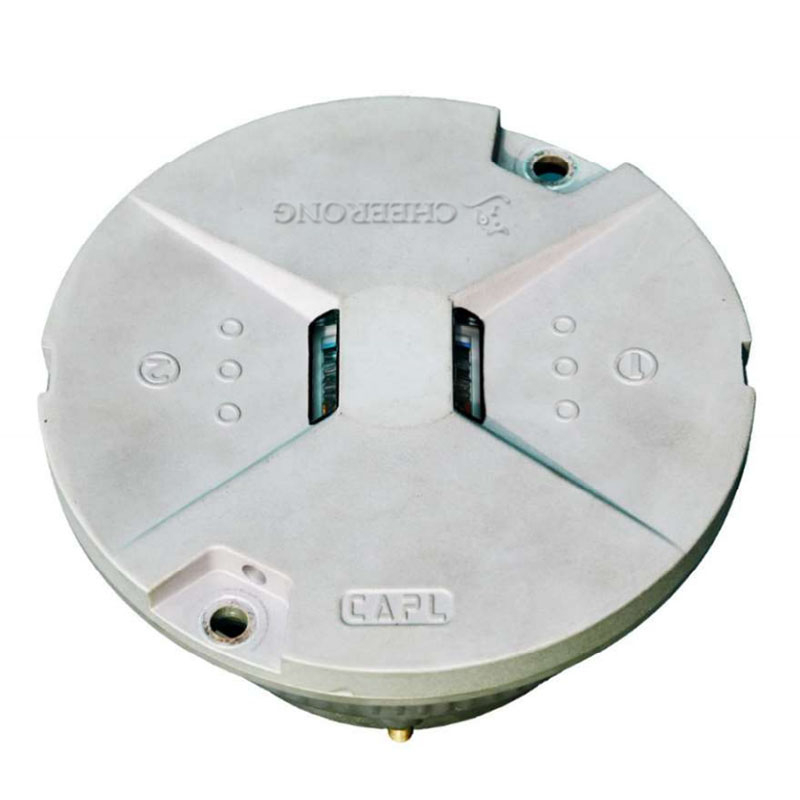

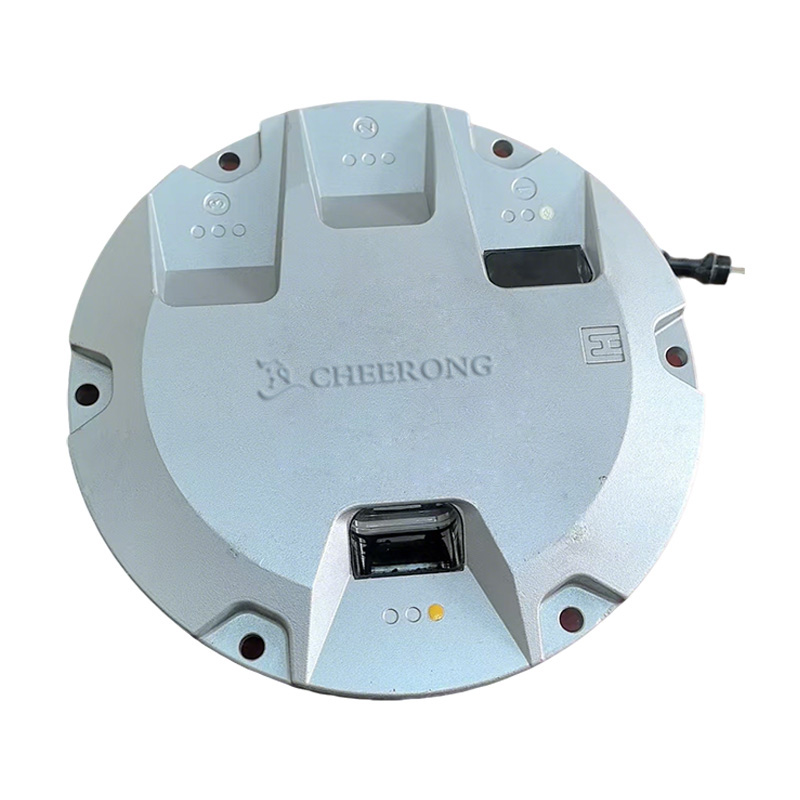

Runway Edge Lights

Product Description

The Runway Edge Light HM-REL-12-X-XX-210 is a crucial aviation lighting device designed to clearly mark the edges of airport runways. It plays a vital role in ensuring the safety of aircraft during take - off and landing operations, especially in low - visibility conditions.

Specification

• The lamp design is strictly in accordance with the technical requirements of CAAC: "Technical Requirements for Runway and Taxiway Aids" (AC-137-CA-2015-03-R1);

• The long life, energy saving and maintenance-free characteristics of LED bring economic benefits;

• High-efficiency power factor correction circuit effectively reduces interference to the power supply network;

• High-frequency switching LED constant current circuit;

• High-precision digital dimming perfectly simulates the dimming curve of halogen light source;

• Professional LED heat dissipation method effectively reduces the operating temperature of lamp beads and drivers to ensure the long service life of LED;

• 125-degree high-temperature long-life electrolytic capacitors are used to improve the stability of LED driver power supply;

• The main body of the lamp is made of aluminum alloy and the surface is anti-corrosion treated, which is sturdy and has good anti-corrosion performance;

• The specially designed lamp structure, the height of the LED lamp protruding from the ground is only 6.3 mm, and the height of the halogen lamp protruding from the ground is only 12 mm;

• The lamp cover adopts high-strength design and forging technology, with good mechanical properties, strong load-bearing capacity and impact resistance;

• The lamp cover is smooth without sharp edges to protect the aircraft tires from damage;

• The overall protection level of the lamp reaches IP68, preventing dust and rain from corroding the inside of the lamp, and can withstand 1380KPa instantaneous hydraulic impact;

• The optical prism adopts special tempered glass to prevent the prism from bursting due to drastic temperature changes;

• The fasteners are made of stainless steel and are durable;

• The parts are modularly designed and universal, easy to replace.


Features

1. Power:Halogen:48W;LED:7W.

2. Power factor:0.8-0.96.

3. Protection grade:IP67.

4. Brightness:>2cd.

5. Ambient temperature:-55-+55℃.
